Servo Amplifier SD4S

Servo Drive SD4S

The product version SD4S - S for Stand-alone - is the first device of the new product series SD4x. The SD4S devices are designed for stationary use in control cabinets of machine tools, turbo compressors and turbo blowers. No matter if linear motor, rotary servo motor, high-pole torque motor or synchronous/asynchronous tool spindle with or without sensor, the SD4S masters all these drive types.
Analog reference signals (+/-10 V), CANopen, EtherCAT (CoE) signals / protocols are processed for connection to the higher-level controller.

Highlights

  • PWM Frequencies up to 32 kHz

    Function:
    The SD4S provides PWM frequencies up to 32 kHz and commutation frequencies up to 64 kHz.

    Advantage:
    Higher rotating field frequencies up to 6,000 Hz and lower harmonic frequency components.

    Benefit:
    Realization of higher pole motor designs and lower motor losses.

  • Motor Analyzer

    Function:
    Simulation of the operating points and FFT analysis with THDi and THDu calculation.

    Advantage:
    Analysis of system performance already at the start of development.

    Benefit:
    Reduction of development time, costs and risk as well as optimization of the overall system.

  • Galvanically Isolated Thermal Contact Input

    Function:
    The input for the thermal contact is galvanically isolated from the logic and main voltage.

    Advantage:
    Safe operation even in case of an insulation problem of the thermal contact in the motor.

    Benefit:
    Protection of the inverter in the event of a fault and higher system availability.

Better Performance and New Control Functions

The first available unit type is designed for small high-speed spindles or motors in the power range from a few hundred watts to 1 kW. Application areas are e.g. dental milling machines or machines for super finishing as those required in watchmaking. Since small spindles do not come with a sufficient insulation resistance in the motors, SD4S now features a galvanic isolation of the thermal contact.

An absolute novelty is the design width of 40 mm only. Particularly in applications with many axes and a low performance, the demand for highly compact drive systems is great. Thus, the construction volume has been further reduced. The parameterization is realized via a default Ethernet interface that replaces the USB interface, which in industrial environments is prone to failure.

Moreover, SD4S comes with programmable digital measuring system interfaces such as Biss-C, EnDat2.2 and TTL. Via a Webserver, technicians can display device information without the need of additional parameterization software. Thanks to the real-time clock, a time synchronization of an incident is possible: Users can figure out whether a failure has been caused for example by a thunderstorm.

The optimized performance, higher speeds as well as the lower motor heating without sine-wave filter are substantial advantages of SD4S.

SD4S - Always the Perfect Drive Function for Your Application

PSM: (Permanently excited synchronous motor)
IPM (Interior Synchronous Permanent Magnet Motor)
ASYN: (Asynchronous motor)
SVC: (Sensorless vector control)
Servo: (Servo mode with encoder feedback)
V/f-PWM: (Sensorless V/f characteristic control based on pulse width modulation)
HS-Block: (Block control with Hall elements)

Servo Amplifier SD4S

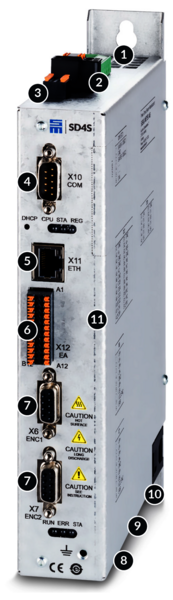

The Interfaces of Servo Drive SD4S

  1. Supply voltage / external ballast resistor
  2. 24 VDC logic power supply
  3. Safety integrated „STO“:  Restart lock to meet category 4/PL e according to EN ISO 13849 1:2015 and EN 61508:2010 SIL3
  4. RS232/485, CAN, CANopen, Modbus RTU
  5. Ethernet 100 MBit, parameterization, diagnosis and operation, Modbus TCP
  6. Digital inputs and outputs
  7. Digital motor encoder interface (Biss C, EnDat 2.2, TTL)
  8. Optional: EtherCAT, Profinet, Powerlink
  9. Galvanically isolated thermal contact
  10. Motor connection

  11. Analog motor encoder interface (Resolver, SinCos 1 Vss)

Drive Functions and Safety Functions

SVC
V/f PWM
HS-Block
Servo
LI
STO

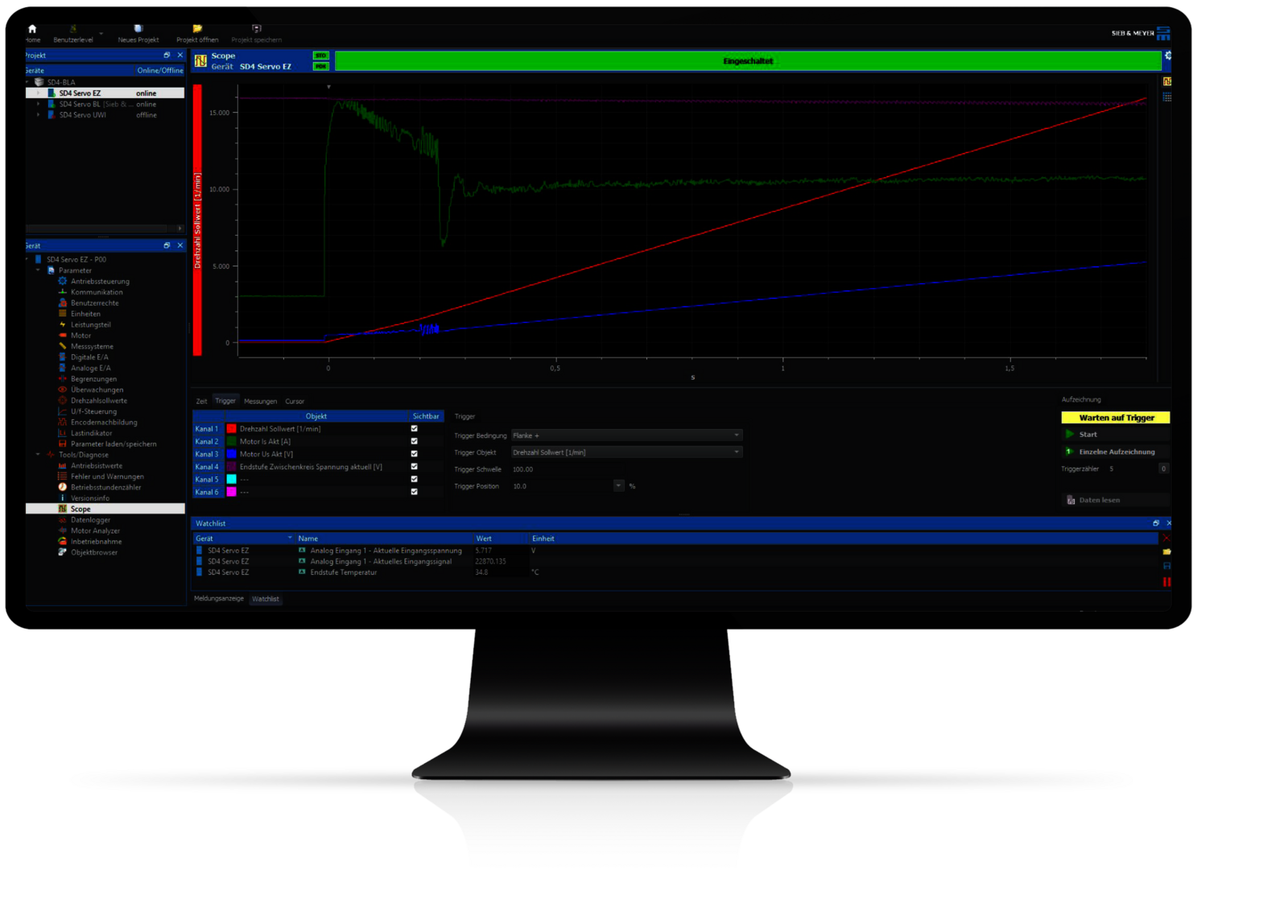

Software for Initial Operation and Parameterization: drivemaster4

The parameterization, simulation and diagnostic software drivemaster4 enables the user to commission drive systems easily and quickly. With the integrated simulation tool Motor Analyzer, the user can already prove at the time of system design that the desired system characteristics in terms of operating points and harmonics can be realized. The basis for this is suitable electrical motor data.

Simulation:

  • Electrical operating points
  • Influence of PWM frequency/converter topology
  • FFT analysis including THDi/THDu calculation
  • Export of simulation data

Start-up:

  • Parameterization of the motor data/interfaces
  • Optimization by means of oscilloscope
  • Commissioning tool

Monitoring:

  • Data logger
  • Real-time clock
  • Error memory
  • Operating hours counter

Technical Specifications of Servo Drive SD4S

Voltage Class 230 V:

Device type Mains voltage Output power[kW] Apparent output power [kVA] Output current [A] Peak output current [A] H x W x D (mm) Weight Cooling
0SD4SB1D1Cxxxx 1 x 230 VAC 0.8 kW 1.6 kVA@16 kHz 4 A@16 kHz 14 A 247 x 43 x 186 1.23 kg Air
0SD4SC1E1Cxxxx 1 x 230 VAC 1.6 kW 3.2 kVA@16 kHz 8 A@16 kHz 28 A 247 x 63 x 186 2.15 kg Air
0SD4SD1E1Cxxxx 1 x 230 VAC 2.4 kW 6.4 kVA@16 kHz 16 A@16 kHz 28 A 247 x 83 x 186 2.4 kg Air

Voltage Class 400 V:

Device typeMains voltageOutput power [kW]Apparent output power [kVA]Output current  [A]Peak output current  [A]H x W x D (mm)WeightCooling
0SD4SD1B1Fxxxx3 x 400 VAC4 kW5.5 kVA @16 kHz8 A @16 kHz20 A247 x 83 x 1862.46 kgAir
0SD4SD1F1Fxxxx3 x 400 VAC6 kW8.3 kVA @16 kHz12 A @16 kHz24 A247 x 83 x 1862.46 kgAir
0SD4SE1I1Fxxxx 3 x 400 VAC10 kW13.9 kVA @16 kHz20 A @16 kHz56 A278 x 93 x 2254.8 kgAir
0SD4SF1I1Fxxxx 3 x 400 VAC15 kW20.8 kVA @16 kHz30 A @16 kHz56 A278 x 118 x 2255.6 kgAir
0SD4SH1M1Fxxxx*3 x 400 VAC24 kW33 kVA @16 kHz48 A @16 kHz96 Ainformation will followinformation will followAir
0SD4SH1N1Fxxxx*3 x400 VAC32 kW44 kVA @16 kHz64 A @16kHz120 Ainformation will followinformation will followAir
0SD4SK1N1Fxxxx*3 x 400 VAC48 kW66 kVA @16 kHz96 A @16 kHz120 Ainformation will followinformation will followAir


* in realization

Applications

  • Precision is indispensable for tightening applications: If the screw is required to be tightened with a defined torque, the servo amplifier must meet this requirement.

    Tightening/Pressing/Clinching

News

Servo Amplifier SD4S

A Drive Controller for All Purposes

One device for two worlds – this sounds like a compromise but has been reality at SIEB & MEYER AG for more than two decades. The drive controllers by…

Read more
Servo Amplifier SD4S

SIEB & MEYER Introduces Innovative SpindleServiceTool (SST)

The new SpindleServiceTool (SST) by SIEB & MEYER helps spindle manufacturers and repair shops to optimize their quality management and save time and…

Read more
Servo Amplifier SD4S

Highly Efficient Operation of High-speed Applications

The drive controllers of the SD4S series by SIEB & MEYER are well-proven wherever highly efficient and loss-free operation of high-speed motors is…

Read more

Feel free to contact us

Enter the character string shown in the picture
[Translate to Englisch:] Servoverstärker SD4S

Servo Drive SD4S

The product version SD4S - S for Stand-alone - is the first device of the new product series SD4x. The SD4S devices are designed for stationary use in control cabinets of machine tools, turbo compressors and turbo blowers. No matter if linear motor, rotary servo motor, high-pole torque motor or synchronous/asynchronous tool spindle with or without sensor, the SD4S masters all these drive types.
Analog reference signals (+/-10 V), CANopen, EtherCAT (CoE) signals / protocols are processed for connection to the higher-level controller.

Highlights

PWM Frequencies up to 32 kHz

  • Function: The SD4S provides PWM frequencies up to 32 kHz and commutation frequencies up to 64 kHz.

  • Advantage: Higher rotating field frequencies up to 6,000 Hz and lower harmonic frequency components.

  • Benefit: Realization of higher pole motor designs and lower motor losses.

Motor Analyzer

  • Function: Simulation of the operating points and FFT analysis with THDi and THDu calculation.

  • Advantage: Analysis of system performance already at the start of development.

  • Benefit: Reduction of development time, costs and risk as well as optimization of the overall system.

Galvanically Isolated Thermal Contact Input

  • Function: The input for the thermal contact is galvanically isolated from the logic and main voltage.

  • Advantage: Safe operation even in case of an insulation problem of the thermal contact in the motor.

  • Benefit: Protection of the inverter in the event of a fault and higher system availability.

Better Performance and New Control Functions

The first available unit type is designed for small high-speed spindles or motors in the power range from a few hundred watts to 1 kW. Application areas are e.g. dental milling machines or machines for super finishing as those required in watchmaking. Since small spindles do not come with a sufficient insulation resistance in the motors, SD4S now features a galvanic isolation of the thermal contact.

An absolute novelty is the design width of 40 mm only. Particularly in applications with many axes and a low performance, the demand for highly compact drive systems is great. Thus, the construction volume has been further reduced. The parameterization is realized via a default Ethernet interface that replaces the USB interface, which in industrial environments is prone to failure.

Moreover, SD4S comes with programmable digital measuring system interfaces such as Biss-C, EnDat2.2 and TTL. Via a Webserver, technicians can display device information without the need of additional parameterization software. Thanks to the real-time clock, a time synchronization of an incident is possible: Users can figure out whether a failure has been caused for example by a thunderstorm.

The optimized performance, higher speeds as well as the lower motor heating without sine-wave filter are substantial advantages of SD4S.

SD4S - Always the Perfect Drive Function for Your Application

PSM: (Permanently excited synchronous motor)
IPM (Interior Synchronous Permanent Magnet Motor)
ASYN: (Asynchronous motor)
SVC: (Sensorless vector control)
Servo: (Servo mode with encoder feedback)
V/f-PWM: (Sensorless V/f characteristic control based on pulse width modulation)
HS-Block: (Block control with Hall elements)

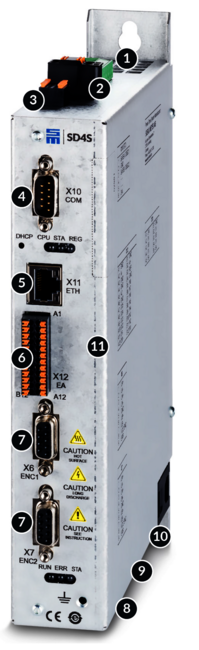

The Interfaces of Servo Drive SD4S
