High-dynamic Two-channel Servo Amplifiers for Tightening Systems in the Automotive Industry

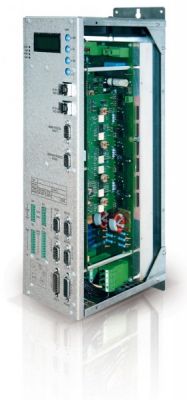

Customized double-axis servo amplifier with modified output stage
Customized double-axis servo amplifier with modified output stage



On behalf of a client SIEB & MEYER has developed a double-axis drive amplifier to be used as central component in a two-channel tightening (nutrunner) system.

Client requirements:

The client planned a compact two-channel tightening system using his own control card and a double-axis servo amplifier purchased in addition. The servo amplifier should work as central component with integrated control technology.

In addition, the client required a device that makes two different installation concepts possible – a switch cabinet version with IP20 housing and a board solution to be installed in the client's device housing.

The servo amplifier should operate servo motors with speeds up to 40,000 rpm. Due to the application the motor as well as the driving servo amplifier require a high overload capacity – the construction volume, however, should remain quite small.

The client uses motors with various power and voltage data and wished for a servo amplifier that is optimally adapted to these conditions. Beside high availability, the devices must provide scalability and excellent quality of current feed.

The customized solution by SIEB & MEYER:

SIEB & MEYER assisted the client from the design phase to serial production. In cooperation the partners developed a customized system solution. The customized development is based on the well-proven technology of the servo amplifier series SD2 that was especially designed for multi-axis applications.

There are six different device variants based on the output stages of the series devices. All six cards use the same PCB layout but have different equipment variants, which makes the greatest number of common parts possible.

The drive amplifier and the measurement and control group are accommodated in a common, compact housing – this saves installation space, makes external wiring redundant and ensures quick and trouble-free exchange of the unit when service is required.

Together the companies developed the hardware and software interface for the control card enabling a flexible access to all process-related objects of both tightening channels. This way the client can implement his application software easily by himself.

The most important details in short:

  • customized double-axis servo amplifier
  • three power ranges and two different installation concepts
  • input: 3 x 230 VAC and 4 x 400 VAC, 50/60 Hz
  • max. rated current/peak current (5 s): 2 x 7/42 Arms
  • hardware and software interface to the client's control card
